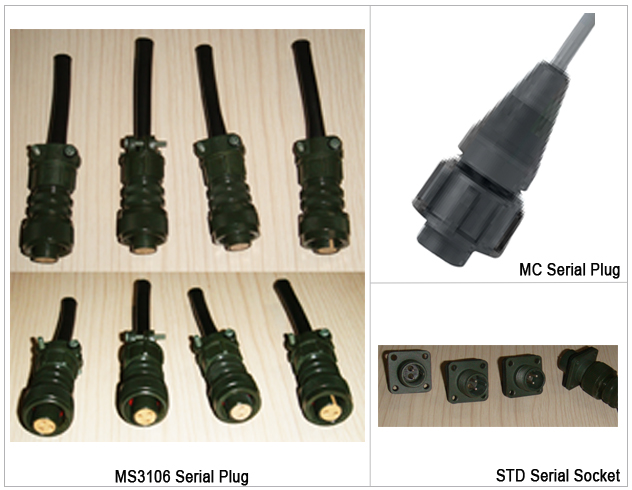

$22Basic The Plug and Socket is often used goods in Geenbellon product-Lines. It is important application in signal sensor of turbine flow meters. It provides the interconnection solution for low cost. Shell components are fabricated from high grade aluminum alloy to provide strength and environmental protection. Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Some cable clamps are a zinc alloy with an olive drab⁄green chromate finish. Contacts are silver plated with pre-tinned solder cups. Features<> Medium to heavy weight cylindrical<> Durable, field-proven design<> Single key/keyway polarization<> Threaded coupling, hard dielectric inserts<> Non-rotating contacts<> Operating temperatures from ¨C55¡ãC to +125¡ãC<> Cost effective<> Intermateable and intermountable with existing 97 Series and MIL-5015 connectors<> Underwriters Laboratories approved recognition File E115497<> Canadian Standards Association Certification File LR69183
