Detail Information
GLD-IV Serial Flow Analzer
$
722
Basic

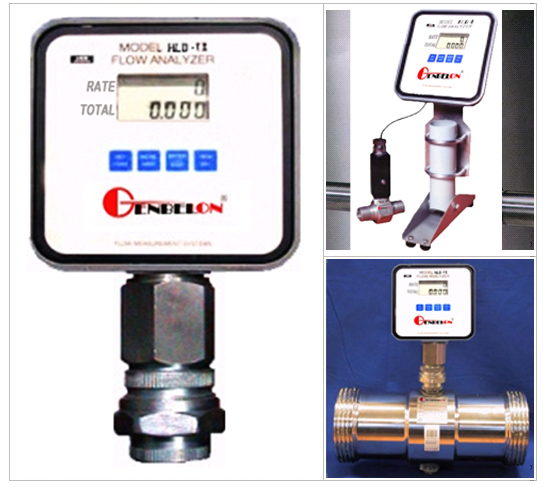

The HLD-II flow analyzer working together with Geenbellon?turbine flow meter is the basic sit-indicator instrument, it can be installed on the top of the flow meter, also can be mounted separately with the flow meter. The distance between turbine flow meter and HLD-II may be up to 200 feet (about 60 meters, magnetic pickup, depends on the electronic signal interference in the area the signal cable goes through). HLD-II receives the pulse signal from the turbine flow meter magnetic sensor, which can display the instantaneous flow and cumulative flow of fluid. Application of the CMOS circuit and liquid crystal display power consumption of the meter is very low, with a lithium battery can ensure that HLD-II runs 3 ~ 5 years.
Features
* Small Power Consumption
* Big and clear characters on the display for easy reading
* Flow metering unit is selectable.
* There is not any additional protection to need while Outdoor mount
* Site installation or remote installation, selection flexible.
* Setting is safe by using password protection
Related Document
GIL-
Products-List
Model-Selecting-Sheet
Model
Model Description
Part No.
Quantity
GLD-IV
Weather-proof enclosure, completed device includes a lithium battery, one foot (30CM) long signal cable, MS-3106A-10SL-4S or MS-3108R-10SL-4S two hole straight plug/angle plug
203000173
GLD-IVa
Weather-proof enclosure, completed device includes a 3.6V lithium battery, ten feet (300CM) long signal cable, the signal sensor connector
203000174
ReM-Kit
Signal pickup connector and a protection tube, stainless steel support base-seat and U card, ten feet(300CM) long signal cable.
203000175
CIR-LD2
Circuit board for Repairing
203000176
PANL-LD2
Front Panel Assembly
203000177
BATT-LD2
D" Battery 3.6V Lith.
203000178
DESI
Circuit protection desiccant
203000179
Cable10F
10 Foot Signal Cable
203000180
Cable20
20 Foot Signal Cable
203000181
Cable40F
40 Foot Signal Cable
203000182
Cable60F
60 Foot Signal Cable
203000183
Cable80F
80 Feet Signal Cable
203000184
Cable80F
80 Feet Signal Cable
203000184
If you would like to have a quotation on the products, please input Quantity then click ¡ú
