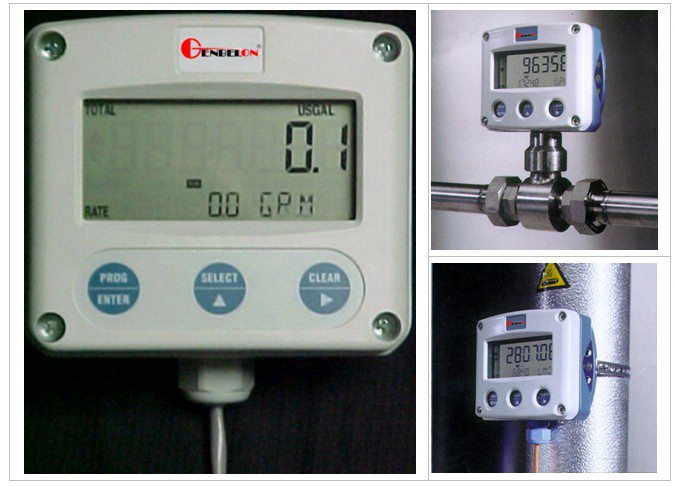

HLD-III Flow Analyzer of Turbine Flowmeter

^$272Basic
The HLD-III is a rate/totaliser displaying flow analyzer.It is a system driven by microprocessors for the displaying of flow rate, Total and accumulated Total. For that purpose, one flow meter with pulse or coil output can be connected to the HLD-III.
The HLD-III is designed to be implemented in many types of applications. For that reason, a SETUP level is available to configure your rate/ totaliser best according to your requirements. SETUP includes several important features as K-factors and measurement units.
The unit has to be powered with 8-30V DC normally. Optional available is battery powered.
With the intrinsically safe option, Model HLD-III-XI can be installed in hazardous area according EEx ia IIB/IIC T4. Please see the details in the manual attched with the delivery box.

Features
<>  Provides a low-cost solution applied measurement;
<>  Provides low repair and low operating cost;
<> Flexible choice in various units of measurement that can be applicable to various places;
<>  The calibration work requires no external equipment;
<>  The most simple operation training;
<>  A separate unit. As outdoor installation, It does not need round-the-clock protection and expensive device.
Related Document
GIL-Products-List      Model-Selecting-Sheet

Model	Model Description	Part No.	Quantity
HLD-III	Weather-proof enclosure, completed device includes a lithium battery, one foot (30CM) long signal cable, MS-3106A-10SL-4S or MS-3108R-10SL-4S two hole straight plug/angle plug	203000186
HLD-III-Ha	Weather-proof enclosure, completed device includes a lithium battery, one foot (30CM) long signal cable,MS-3106A-10SL-4S or MS-3108R-10SL-4S two hole straight plug/angle plug	203000187
HLD-III-R	Weather-proof enclosure, completed device includes a 3.6V lithium battery, ten feet (300CM) long signal cable, the signal sensor connector	203000188
ReM-Kit	Signal pickup connector and a protection tube, stainless steel support base-seat and U card, ten feet(300CM) long signal cable.	203000175
CIR-LD3	Circuit board for Repairing	203000190
PANL-LD3	Front Panel Assembly	203000191
BATT-LD3	D" Battery 3.6V Lith.	203000192
DESI	Circuit protection desiccant	203000179
Cable10F	10 Foot Signal Cable	203000180
Cable20	20 Foot Signal Cable	203000181
Cable40F	40 Foot Signal Cable	203000182
Cable60F	60 Foot Signal Cable	203000183
Cable80F	80 Feet Signal Cable	203000184
