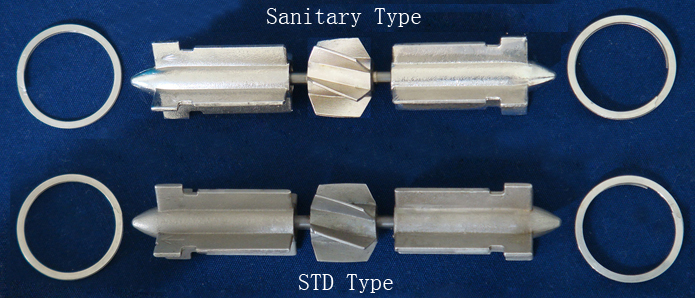

Sanitary Type Repair Kis of turbine Flow Meter

^$362Basic
Geenbellon Turbine Flow Meters can measure fluid in a closed pipe system and display flow rate and total flow in volume unit in same time. The theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
<>Electropolished Parts that comply with 3A sanitary specifacations.
<>Made of High grade Stainless steel and Alloy Material
<>Special Processing and workmanship to nickel
<>Long life for using in Hard and tough condition for flow measurement
<>Bearing high temprature and Corrosion
Application
<>Working with Geenbellon Sanitary type Turbine Flow Meter
<>Using in Food Processing, Pharmaceutical industry and dairy Industry.
<>Measure flow rate and total of the other corrosion liquids of Chemical products.
Brand
Geenbellon
Related Document
GIL-Products-List Model-Selecting-Sheet

Model	Model Description	Part No.	Quantity
FTR3/8Q08A2FF	Size3/8",End1"FF,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT0.45Kg	202000274
FTR1/2Q08A2FF	Size1/2",END1"FF,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT0.45Kg	202000275
FTR3/4Q08A2FF	Size3/4",END1"FF,ACC±0.5%,Flow2-15GPM/0.45-3.41M3.H,WT0.45Kg	202000276
FTR7/8Q08A2FF	Size7/8",End1"FF,ACC±0.5%,Flow3-30GPM/0.6-6.8M3.H,WT0.45Kg	202000277
FTR1Q08A2FF	Size1",FF,ACC±0.5%,Flow5-50GPM/1-11M3.H,WT0.45Kg	202000278
FTR15Q08A2FF	Size1.5",FF,ACC±0.5%,Flow15-180/3-41M3.H,WT0.45Kg	202000279
FTR2Q08A2FF	Size2",FF,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT0.9Kg	202000280
FTR3/8Q08A1FF	Size3/8",End1"FF,ACC±1.0%,Flow0.3-3GPM/0.067-0.67M3.H,WT0.9Kg	202000283
FTR1/2Q08A1FF	Size1/2",END1"FF,ACC±1.0%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT0.9Kg	202000284
FTR3/4Q08A1FF	Size3/4",END1"FF,ACC±1.0%,Flow2-15GPM/0.45-3.41M3.H,WT0.9Kg	202000285
FTR7/8Q08A1FF	Size7/8",End1"FF,ACC±1.0%,Flow3-30GPM/0.6-6.8M3.H,WT0.9Kg	202000286
FTR1Q08A1FF	Size1",FF,ACC±1.0%,Flow5-50GPM/1-11M3.H,WT0.9Kg	202000287
FTR15Q08A1FF	Size1.5",FF,ACC±1.0%,Flow15-180/3-41M3.H,WT0.9Kg	202000288
FTR2Q08A1FF	Size2",FF,ACC±1.0%,Flow40-400GPM/9-90M3.H,WT0.9Kg	202000289
