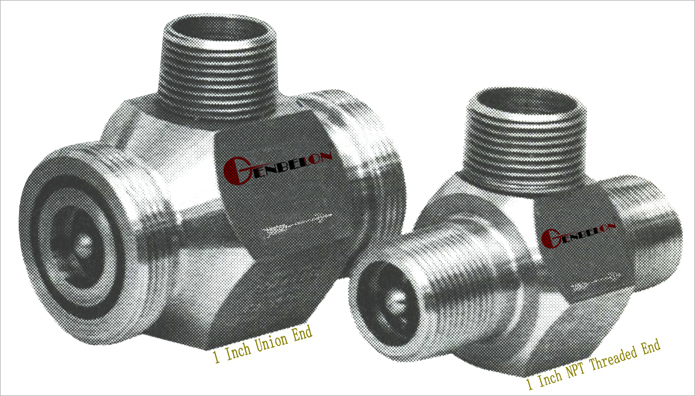

STD Type Union End Turbine Flow Meter

^$783Basic
Geenbellon Turbine Flow Meters can measure fluid in a closed pipe system and display flow rate and total flow in Volume unit in same time. the theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
*> Standard Union Connection, Easy to install and uninstall in a pipe line and easy to find the mating material. .
*> The Max working pressure 5000PSi (34.5MPa)
*> the Tungsten Carbide/Ceramic hybrid ball bearings & shaft extend much longer of the usage life of Flow meter
*> High accuracy and High accuracy repeatable measurement
*> Rugged structure to withstand continual rig up/down
*> Most economical solution for flow measurement applications
*> High frequency digital output easy interface with other digital equipment.
*> Wide temperature & Pressure Ranges
*> Wide flow range (Typically 10:1-50:1)
*> Minimum maintenance
*> Long service life, even in severe applications
Application
@ Water & dirty water measurement
@ Disposal wells
@ fuel and feed water
@ liquid fertilizer
@ fuel and chemical measurement in many field.
@ liquid propane
@ mining and leaching

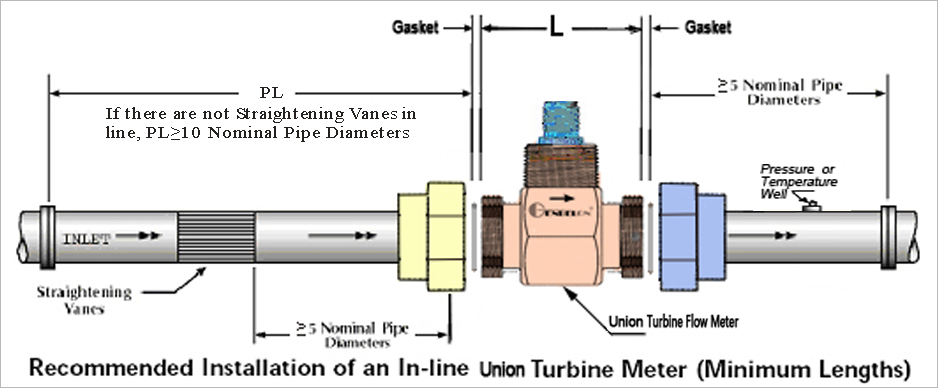

Installation Diagram

Brand
Geenbellon
Related Document
GIL-Products-List Model-Selecting-Sheet

Model	Model Description	Part No.	Quantity
FT3/8x1UN1Q01A2	Size3/8",End1",ACC±0.5%,WP4000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.41Kg	200001987
FT1/2x1UN1Q01A2	Size1/2",End1",±0.5%,WP4000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.41Kg	200001989
FT3/4x1UN1Q01A2	Size3/4",End1",ACC±0.5%,WP4000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.41Kg	200001991
FT7/8x1UN1Q01A2	Size7/8",End1",ACC±0.5%,WP4000PSi,Flow3-30GPM/0.67-6.8H,WT1.41Kg	200001993
FT1UN1Q01A2	Size1",ACC±0.5%,WP4000PSi,Flow5-50GPM/1-11M3.H,WT1.41Kg	200001995
FT3/8x1UN2Q01A2	Size3/8",End1",ACC±0.5%,WP6000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.41Kg	200001997
FT1/2x1UN2Q01A2	Size1/2",End1",±0.5%,WP6000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.41Kg	200001999
FT3/4x1UN2Q01A2	Size3/4",End1",ACC±0.5%,WP6000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.41Kg	200002001
FT7/8x1UN2Q01A2	Size7/8",End1",ACC±0.5%,WP6000PSi,Flow3-30GPM/0.67-6.8H,WT1.41Kg	200002003
FT1UN2Q01A2	Size1",ACC±0.5%,WP6000PSi,Flow5-50GPM/1-11M3.H,WT1.41Kg	200002005
FT3/8x1UN1Q01A1	Size3/8",End1",ACC±1.0%,WP4000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.41Kg	200001988
FT1/2x1UN1Q01A1	Size1/2",End1",±1.0%,WP4000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.41Kg	200001990
FT3/4x1UN1Q01A1	Size3/4",End1",ACC±1.0%,WP4000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.41Kg	200001992
FT7/8x1UN1Q01A1	Size7/8",End1",ACC±1.0%,WP4000PSi,Flow3-30GPM/0.67-6.8H,WT1.41Kg	200001994
FT1UN1Q01A1	Size1",ACC±1.0%,WP4000PSi,Flow5-50GPM/1-11M3.H,WT1.41Kg	200001996
FT3/8x1UN2Q01A1	Size3/8",End1",ACC±1.0%,WP6000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.41Kg	200001998
FT1/2x1UN2Q01A1	Size1/2",End1",±1.0%,WP6000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.41Kg	200002000
FT3/4x1UN2Q01A1	Size3/4",End1",ACC±1.0%,WP6000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.41Kg	200002002
FT7/8x1UN2Q01A1	Size7/8",End1",ACC±1.0%,WP6000PSi,Flow3-30GPM/0.67-6.8H,WT1.41Kg	200002004
FT1UN2Q01A1	Size1",ACC±1.0%,WP6000PSi,Flow5-50GPM/1-11M3.H,WT1.41Kg	200002006
