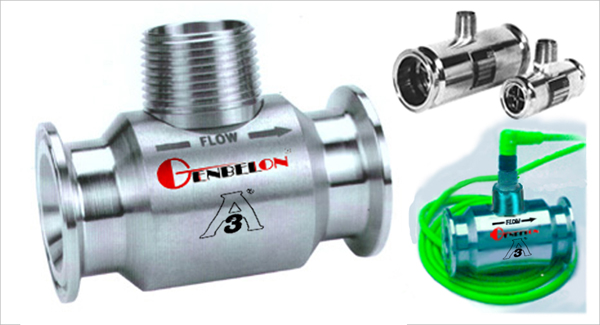

Sanitary Type Tri-Clover Turbine Flow Meter

^$528Basic
Geenbellon Turbine Flow Meters can measure fluid in a closed pipe system and display flow rate and total flow in Volume unit in same time. the theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
<> Standard Tri-Clover connection for easy installing and reinstallment
<> Rugged enough to withstand continual rig up/down
<> Accurate and repeatable measurement
<> Economical solution for turbine flow meter applications
<> Minimum maintenance, longest service life, even in severe applications
<> Replacement of repair kits make a old flow meter new. It means this flow meter would be long working life.
<> Changing different repair kits to a flow meter, it has different function of varied model of flow meter.
Applications
<> Municipal Engineering
<> Clean Water Measurement
<> Sanitary industry
<> Pharmaceutical Industry
Brand
Geenbellon
Installation Diagram

Related Document
GIL-Products-List Model-Selecting-Sheet

Model	Model Description	Part No.	Quantity
FT3/8x1/2TR1Q08A2	Size3/8",End1/2",±0.5%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.0Kg	200001687
FT1/2TR1Q08A2	Size1/2",ACC±0.5%,WP1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.0Kg	200001689
FT3/8x3/4TR1Q08A2	Size3/8",End3/4",±0.5%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.15Kg	200001691
FT1/2x3/4TR1Q08A2	Size1/2",End3/4",±0.5%,1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.15Kg	200001693
FT3/4TR1Q08A2	Size3/4",ACC±0.5%,WP1500PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.15Kg	200001695
FT7/8x1.5TR1Q08A2	Size7/8",End1.5",ACC±0.5%,WP600PSi,Flow3-30GPM/0.7-6.8M3.H,WT0.9Kg	200001697
FT1x1.5TR1Q08A2	Size1",End1.5",ACC±0.5%,WP600PSi,Flow5-50GPM/1-11M3.H,WT0.9Kg	200001699
FT1x1.5TR1Q08A2	Size1",End1.5",ACC±0.5%,WP600PSi,Flow5-50GPM/1-11M3.H,WT0.9Kg	200001699
FT1.5TR1Q08A2	Size1.5",ACC±0.5%,WP1500PSi,Flow15-180GPM/3-41M3.H,WT3.2Kg	200001701
FT2x2.5TR1Q08A2	Size2",End2.5,ACC±0.5%,WP1000PSi,Flow40-400GPM/9-90M3.H,WT5.9Kg	200001703
FT3TR1Q08A2	Size3",ACC±0.5%,WP1000PSi,Flow80-800GPM/18-181M3.H,WT11.35Kg	200001705
FT3/8x1/2TR1Q08	Size3/8",End1/2",±1.0%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.0Kg	200001688
FT1/2TR1Q08	Size1/2",ACC±1.0%,WP1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.0Kg	200001690
FT3/8x3/4TR1Q08	Size3/8",End3/4",±1.0%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.15Kg	200001692
FT1/2x3/4TR1Q08	Size1/2",End3/4",±1.0%,1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.15Kg	200001694
FT3/4TR1Q08	Size3/4",ACC±1.0%,WP1500PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.15Kg	200001696
FT7/8x1.5TR1Q08	Size7/8",End1.5",ACC±1.0%,WP600PSi,Flow3-30GPM/0.7-6.8M3.H,WT0.9Kg	200001698
FT1x1.5TR1Q08	Size1",End1.5",ACC±1.0%,WP600PSi,Flow5-50GPM/1-11M3.H,WT0.9Kg	200001700
FT1.5TR1Q08	Size1.5",ACC±1.0%,WP1500PSi,Flow15-180GPM/3-41M3.H,WT3.2Kg	200001702
FT2x2.5TR1Q08	Size2",End2.5,ACC±1.0%,WP1000PSi,Flow40-400GPM/9-90M3.H,WT5.9Kg	200001704
FT3TR1Q08	Size3",ACC±1.0%,WP1000PSi,Flow80-800GPM/18-181M3.H,WT11.35Kg	200001706
