Geenbellon Turbine Flow Meters can measure Instantanous Flow Rate and Accumulated Flow in a closed pipe system and display these data in Volume Unit in same time. The theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate. The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasive, and anticorrosive. So, it is applied widely in the field of Industry, Municipal, Agriculture, Military engineering.

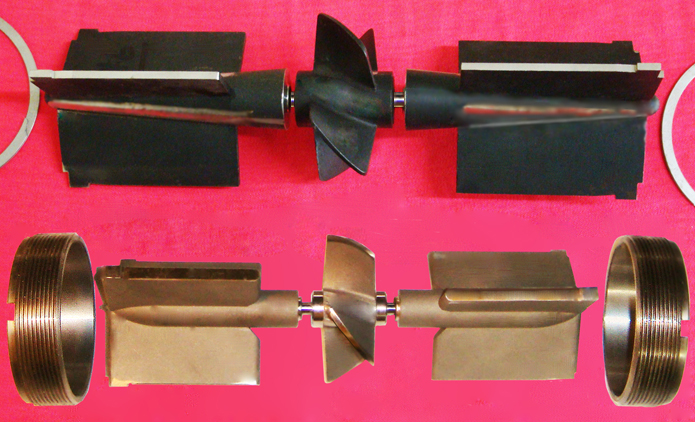

Cement-Slurry Repair kits of Geenbellon^TM Turbine flow meter are modified by removing half the blades from the vanes and the rotors.
The modification allows larger particles to pass through the meter which reduces preeure loss and improves kits life.The kits fit any Geenbellon turbine flow meter body.

Features
<>Made of High grade Stainless steel and Alloy Material
<>Special Processing and workmanship for Hardness to withstand severe corrode
<>Long life for using in Hard and tough condition for flow measurement
<>Bearing high temprature and corrosion, hereby especially it can bear strong abrasion.

---

Application
<>Working with Geenbellon Flow Meter
<>Measure flow rate and total of thousands liquids of Chemical products.

---

Technical Parameters
Accuracy: ± 1.0%
Repeatability: +/-0.05%
Temperature Range (magnetic pickup):
@Standard -67 to 250°F( -55 to 120°C)
MATERIALS
Vanes: 304/316L stainless steel
Roter: CD-4MCu
Shaft/Bearing: Tungsten Carbide
Ring: 300Serial Stainless Steel
Optional materials
* Shaft Binderless carbide for enhanced corrosion resistance to selected chemicals Silver/Cupper brazing to withstand temperatures to 450°F and chemicals that attack epoxy bonding bearing materials
* Rotor Nickel plating for enhanced corrosion resistance to selected chemicals(especially acids that corrode ferrous
COMPLIANCE
*CSA Certified Harzardous Locations Class I,Group A,B,C,D,Div.1
*NACEMR01-75 (NACE traceability available on request.)

---

Kits Size Selection
The kits of Geenbellon Turbine Flow Meters are decided on the instantaneous flow rate in the pipe-line. Do not on size of the pipe-line the meter will be mounted in.

---

Model No. Definition

---

Related Document
GIL-Products-List      Model-Selecting-Sheet

Word Explanation
STD = Standard Type || Size = Nominal Bore Size || End = End Connction Size || Flow = Flow Range || GPM = Gallon Per Minute || M3.H = Cubic Meter PerHour || WT = Weight
