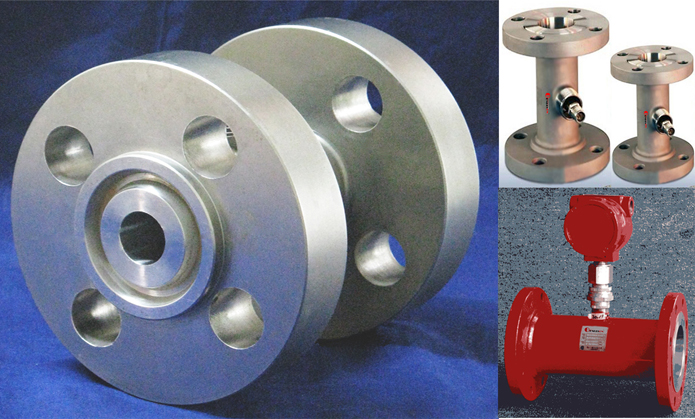

STD ANSI 600# (±0.5%) Flanged Turbine Flow Meters

^$1398BASIC
Geenbellon Turbine Flow Meters can measure Instantanous Flow Rate and Accumulated Flow in a closed pipe system and display these data in Volume Unit in same time. The theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate. The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasive, and anticorrosive. So, it is applied widely in the field of Industry, Municipal, Agriculture engineering.

Geenbellon Turbine Flow Meters are available in a variety of end connections. They are Flanged, Between-Flanged (BF), Grooved, Threaded, Tri-Clover, Weco, GrayLoc, Union, Drillpipe, BigInch etc.
Geenbellon Flanged Turbine Flow Meters with ANSI flanged end connections are available in both raised-face (RF 150# to 1500#) models and ring-type joint (RTJ 600# to 2500#) models in Standard ANSI B16.5. Geenbellon routinely supplies other type flange end connections including DIN, API and a variety of proprietary flange and clamp end connections especially for high pressure services. Consult Geenbellon for any specific requirement.
Flanged materials can be carbon steel or stainless steel. All flanged Geenbellon meters are equipped with slip-on flanges, which are then welded to the outside of the meter rather than being welded to the end of the meter body. Thus, the flange never comes into contact with the fluid being measured.
This webpage will be instructing on ANSI 600# flanegd Turbine Flow Meters.

Features
*> Standard ANSI Flange Connection, Easy to install and uninstall in a pipe line and easy to find the mating material. .
*> The Max working pressure ANSI 600# flange 1480PSi (10.2MPa)
*> the Tungsten Carbide/Ceramic hybrid ball bearings & shaft extend much longer of the usage life of Flow meter
*> High accuracy and High accuracy repeatable measurement
*> Rugged structure to withstand continual rig up/down
*> Most economical solution for flow measurement applications
*> High frequency digital output easy interface with other digital equipment.
*> Symmetrical Bi-directional Design
*> Wide temperature & Pressure Ranges
*> Wide flow range (Typically 15:1-100:1)
*> Minimum maintenance
*> Long service life, even in severe applications

Application
@ Water & dirty water measurement
@ Disposal wells
@ fuel and feed water
@ liquid fertilizer
@ fuel and chemical measurement in many field.
@ liquid propane
@ mining and leaching

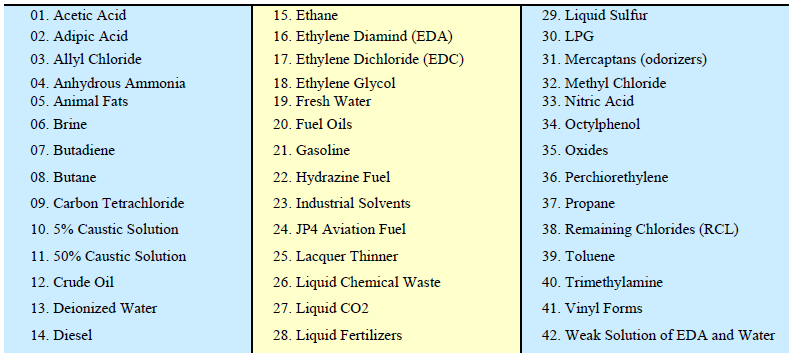

Medium for Measured

Technical Parameters
Accuracy: +/- 0.5%
Repeatable: +/- 0.05%
End Connection: ANSI SS/CS 600# Flange
Working Pressure: Max.1480 PSi (10.2MPa) @ 20℃
Working Tempreture: -65 to 450 ℉ (-55 to 232 ℃)
Pickup Connection: AN3106A-10SL-4S/3S (MIL STD Two/Three Holes Plug)
Magnetic Sensors: 1ea/2ea(Optional) Provide the STD signal for loacal/romote diaplay equipment.
@Structure of Internal repair Kits: Y Serial
@Material
Body: Stainless Steel 304/316L (Depend on the fluid measured)
Vane: 304/316L
Shaft&Bearing: Tungsten Carbide
@Pickup:
Body: 300 Serial Stainless Steel
Compliance
*CSA Certified Harzardous Locations Class I, Group A,B,C,D,Div.1
*NACE MR01-75(NACE traceability available on request.)

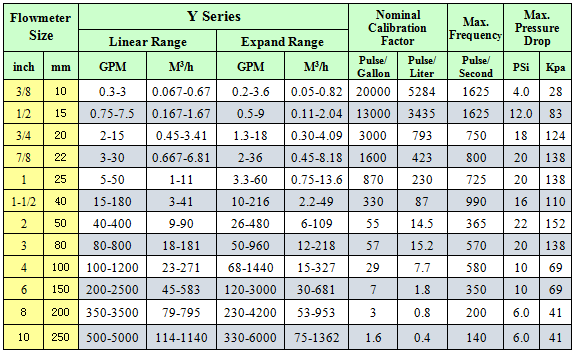

Meter Size Selection
Geenbellon Turbine Flow Meters bore size selection do not depend on size of the pipe-line the meter will be mounted in, it must be decided on the instantaneous flow rate in the pipe-line.

Note: 1.The data above is based on Water-Calibration.
2. The best linear flow range for Non-lubricating Liquid is at upper 60% of the standard range.
3. Consult factory for engineering assistance when the viscosities of the liquids measured greater than 5 centistokes.

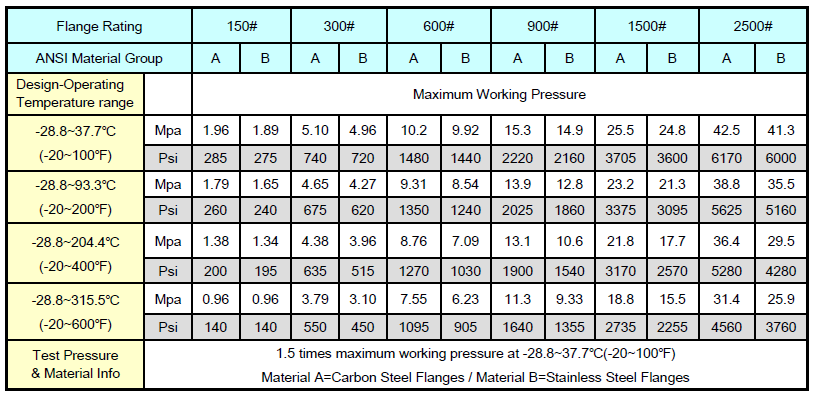

ANSI B16.5 Flanges Selection

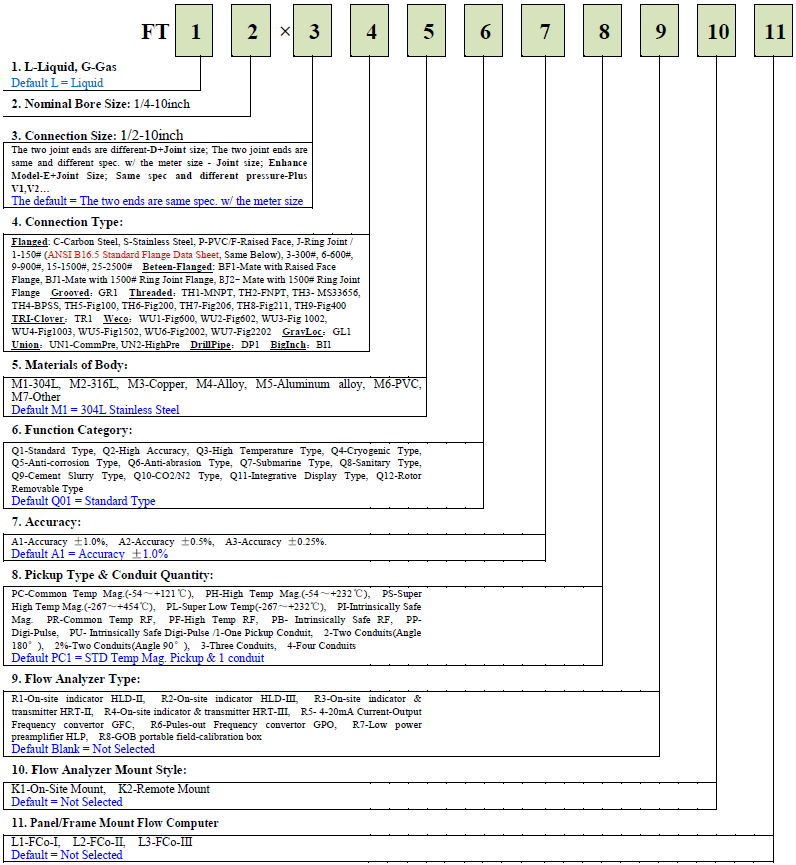

Model No. Definition

Note：①. Model No. is composed of letters plus numbers alternatively & regularly. ②. There are no any conflicts between the various elements of the model cannot be allowed. For example, the selection of high temperature turbine body in previous position, the following position is the choice of standard temperature pickups. As to detailed information, please refer to the related section in manual or enquires with the manufacturers. ③. When you select more than 1 pickup and flow analyzer to work at the same time, in the No. 9 and No. 10 position, express method is flow analyzer model & installation mode + ... ④. In order to save costs, Geenbellon assists the user in making a basic options selection on flow analyzer and flow computer under common conditions. If having special needs, marked ( ) with the corresponding position of the model, while the technical details is required to list in the technical agreement, quotation or contract.

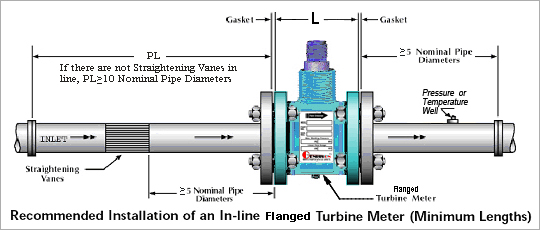

Installation Diagram

Related Document
GIL-Products-List Model-Selecting-Sheet

Word Explanation
STD = Standard Type || ACC = Accuracy || Size = Nominal Bore Size || End = End Connction Size || Flow = Flow Range || GPM = Gallon Per Minute || M3.H = Cubic Meter Per Hour || WT = Weight in Kilogram
RFSS = Stainless Steel Flange w/Raised Face, the size of flange is 150#, 300#, 600#, 900#, 1500#, 2500#
RFCS = Carbon Steel Flange w/Ring Joint, the size of flange is 600#, 900#, 1500#, 2500#
RJSS = Stainless Steel Flange w/Raised Face, the size of flange is 150#, 300#, 600#, 900#, 1500#, 2500#
RJCS = Carbon Steel Flange w/Ring Joint, the size of flange is 600#, 900#, 1500#, 2500#

Model	Model Description	Part No.	Quantity
FT3/8x1/2SF6Q01A2	Size3/8",End1/2",RFSS,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT5.4Kg	200000729
FT1/2SF6Q01A2	Size1/2",RFSS,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT5.4Kg	200000730
FT3/4SF6Q01A2	Size3/4",RFSS,ACC±0.5%,Flow2-15GPM/0.45-3.41M3.H,WT5.4Kg	200000731
FT7/8x1SF6Q01A2	Size7/8",End1",RFSS,ACC±0.5%,Flow3-30GPM/0.67-6.8H,WT6.8Kg	200000732
FT1SF6Q01A2	Size1",RFSS,ACC±0.5%,Flow5-50GPM/1-11M3.H,WT6.8Kg	200000733
FT1.5SF6Q01A2	Size1.5",RFSS,ACC±0.5%,Flow15-180/3-41M3.H,WT13.62Kg	200000734
FT2SF6Q01A2	Size2",RFSS,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT20.43Kg	200000735
FT3SF6Q01A2	Size3",RFSS,ACC±0.5%,Flow80-800GPM/18-181M3.H,WT22.7Kg	200000736
FT4SF6Q01A2	Size4",RFSS,ACC±0.5%,Flow100-1200GPM/23-271M3.H,WT43.13Kg	200000737
FT6SF6Q01A2	Size6",RFSS,ACC±0.5%,,Flow200-2500GPM/45-583M3.H,WT90.8Kg	200000738
FT8SF6Q01A2	Size8",RFSS,ACC±0.5%,Flow350-3500GPM/79-795M3.H,WT124.85Kg	200000739
FT10SF6Q01A2	Size10",RFSS,ACC±0.5%,Flow500-5000GPM/114-1140M3.H,WT130.5Kg	200000740
FT3/8x1/2CF6Q01A2	Size3/8",End1/2",RFCS,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT5.4Kg	200000741
FT1/2CF6Q01A2	Size1/2",RFCS,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT5.4Kg	200000742
FT3/4CF6Q01A2	Size3/4",RFCS,ACC±0.5%,Flow2-15GPM/0.45-3.41M3.H,WT5.4Kg	200000743
FT7/8x1CF6Q01A2	Size7/8",End1",RFCS,ACC±0.5%,Flow3-30GPM/0.6-6.8M3.H,WT6.8Kg	200000744
FT1CF6Q01A2	Size1",RFCS,ACC±0.5%,Flow5-50GPM/1-11M3.H,WT6.8Kg	200000745
FT1.5CF6Q01A2	Size1.5",RFCS,ACC±0.5%,Flow15-180/3-41M3.H,WT13.62Kg	200000746
FT2CF6Q01A2	Size2",RFCS,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT20.43Kg	200000747
FT3CF6Q01A2	Size3",RFCS,ACC±0.5%,Flow80-800GPM/18-181M3.H,WT22.7Kg	200000748
FT4CF6Q01A2	Size4",RFCS,ACC±0.5%,,Flow100-1200GPM/23-271M3.H,WT43.13Kg	200000749
FT6CF6Q01A2	Size6",RFCS,ACC±0.5%,,Flow200-2500GPM/45-583M3.H,WT90.8Kg	200000750
FT8CF6Q01A2	Size8",RFCS,ACC±0.5%,,Flow350-3500GPM/79-795M3.H,WT124.85Kg	200000751
FT10CF6Q01A2	Size10",RFCS,ACC±0.5%,Flow500-5000GPM/114-1140M3.H,WT130.5Kg	200000752
FT3/8x1/2SJ6Q01A2	Size3/8",End1/2",RJSS,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT5.4Kg	200000753
FT1/2SJ6Q01A2	Size1/2",RJSS,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT5.4Kg	200000754
FT3/4SJ6Q01A2	Size3/4",RJSS,ACC±1.0%,Flow2-15GPM/0.45-3.41M3.H,WT5.4Kg	200000755
FT7/8x1SJ6Q01A2	Size7/8",End1",RJSS,ACC±0.5%,Flow3-30GPM/0.67-6.8H,WT6.8Kg	200000756
FT1SJ6Q01A2	Size1",RJSS,ACC±1.0%,Flow5-50GPM/1-11M3.H,WT6.8Kg	200000757
FT1.5SJ6Q01A2	Size1.5",RJSS,ACC±0.5%,Flow15-180/3-41M3.H,WT13.62Kg	200000758
FT2SJ6Q01A2	Size2",RJSS,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT20.42Kg	200000759
FT3SJ6Q01A2	Size3",RJSS,ACC±0.5%,Flow80-800GPM/18-181M3.H,WT22.7Kg	200000760
FT4SJ6Q01A2	Size4",RJSS,ACC±0.5%,Flow100-1200GPM/23-271M3.H,WT43.13Kg	200000761
FT6SJ6Q01A2	Size6",RJSS,ACC±0.5%,,Flow200-2500GPM/45-583M3.H,WT90.8Kg	200000762
FT8SJ6Q01A2	Size8",RJSS,ACC±0.5%,Flow350-3500GPM/79-795M3.H,WT124.85Kg	200000763
FT10SJ6Q01A2	Size10",RJSS,ACC±0.5%,Flow500-5000GPM/114-1140M3.H,WT130.5Kg	200000764
FT3/8x1/2CJ6Q01A2	Size3/8",End1/2",RJCS,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT5.4Kg	200000765
FT1/2CJ6Q01A2	Size1/2",RJCS,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT5.4Kg	200000766
FT3/4CJ6Q01A2	Size3/4",RJCS,ACC±0.5%,Flow2-15GPM/0.45-3.41M3.H,WT5.4Kg	200000767
FT7/8x1CJ6Q01A2	Size7/8",End1",RJCS,ACC±0.5%,Flow3-30GPM/0.6-6.8M3.H,WT6.8Kg	200000768
FT1CJ6Q01A2	Size1",RJCS,ACC±0.5%,Flow5-50GPM/1-11M3.H,WT6.8Kg	200000769
FT1.5CJ6Q01A2	Size1.5",RJCS,ACC±0.5%,Flow15-180/3-41M3.H,WT13.6Kg	200000770
FT2CJ6Q01A2	Size2",RJCS,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT20.43Kg	200000771
FT3CJ6Q01A2	Size3",RJCS,ACC±0.5%,Flow80-800GPM/18-181M3.H,WT22.7Kg	200000772
FT4CJ6Q01A2	Size4",RJCS,ACC±0.5%,,Flow100-1200GPM/23-271M3.H,WT43.13Kg	200000773
FT6CJ6Q01A2	Size6",RJCS,ACC±0.5%,,Flow200-2500GPM/45-583M3.H,WT90.8Kg	200000774
FT8CJ6Q01A2	Size8",RJCS,ACC±0.5%,,Flow350-3500GPM/79-795M3.H,WT124.85Kg	200000775
FT10CJ6Q01A2	Size10",RJCS,ACC±0.5%,Flow500-5000GPM/114-1140M3.H,WT130.5Kg	200000776
