STD Type Tri-Clover Turbine Flow Meter

^$395Basic
Geenbellon Turbine Flow Meters can measure fluid in a closed pipe system and display flow rate and total flow in Volume unit in same time. the theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.
Features
<> Standard Tri-Clover connection for easy installing and reinstallment
<> Rugged enough to withstand continual rig up/down
<> Accurate and repeatable measurement
<> Economical solution for turbine flow meter applications
<> Minimum maintenance, longest service life, even in severe applications
<> Replacement of repair kits make a old flow meter new. It means this flow meter would be long working life.
<> Changing different repair kits to a flow meter, it has different function of varied model of flow meter.
Applications
<> Municipal Engineering
<> Clean Water Measurement
<> Sanitary industry
<> Pharmaceutical Industry
Brand
Geenbellon

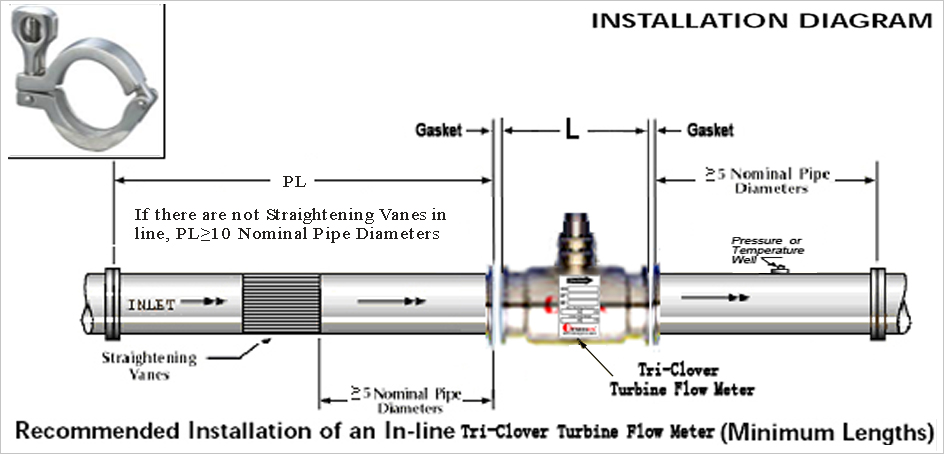

Installation Diagram

Related Document
GIL-Products-List Model-Selecting-Sheet

Model	Model Description	Part No.	Quantity
FT3/8x1/2TR1Q01A2	Size3/8",End1/2",±0.5%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.0Kg	200001667
FT3/8x1/2TR1Q01	Size3/8",End1/2",±1.0%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.0Kg	200001668
FT1/2TR1Q01A2	Size1/2",ACC±0.5%,WP1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.0Kg	200001669
FT1/2TR1Q01	Size1/2",ACC±1.0%,WP1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.0Kg	200001670
FT3/8x3/4TR1Q01A2	Size3/8",End3/4",±0.5%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.15Kg	200001671
FT3/8x3/4TR1Q01	Size3/8",End3/4",±1.0%,WP1500PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.15Kg	200001672
FT1/2x3/4TR1Q01A2	Size1/2",End3/4",±0.5%,1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.15Kg	200001673
FT1/2x3/4TR1Q01	Size1/2",End3/4",±1.0%,1500PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.15Kg	200001674
FT3/4TR1Q01A2	Size3/4",ACC±0.5%,WP1500PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.15Kg	200001675
FT3/4TR1Q01	Size3/4",ACC±1.0%,WP1500PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.15Kg	200001676
FT7/8x1.5TR1Q01A2	Size7/8",End1.5",ACC±0.5%,WP600PSi,Flow3-30GPM/0.7-6.8M3.H,WT0.9Kg	200001677
FT7/8x1.5TR1Q01	Size7/8",End1.5",ACC±1.0%,WP600PSi,Flow3-30GPM/0.7-6.8M3.H,WT0.9Kg	200001678
FT1x1.5TR1Q01A2	Size1",End1.5",ACC±0.5%,WP600PSi,Flow5-50GPM/1-11M3.H,WT0.9Kg	200001679
FT1x1.5TR1Q01	Size1",End1.5",ACC±1.0%,WP600PSi,Flow5-50GPM/1-11M3.H,WT0.9Kg	200001680
FT1.5TR1Q01A2	Size1.5",ACC±0.5%,WP1500PSi,Flow15-180GPM/3-41M3.H,WT3.2Kg	200001681
FT1.5TR1Q01	Size1.5",ACC±1.0%,WP1500PSi,Flow15-180GPM/3-41M3.H,WT3.2Kg	200001682
FT2x2.5TR1Q01A2	Size2",End2.5,ACC±0.5%,WP1000PSi,Flow40-400GPM/9-90M3.H,WT5.9Kg	200001683
FT2x2.5TR1Q01	Size2",End2.5,ACC±1.0%,WP1000PSi,Flow40-400GPM/9-90M3.H,WT5.9Kg	200001684
FT3TR1Q01A2	Size3",ACC±0.5%,WP1000PSi,Flow80-800GPM/18-181M3.H,WT11.35Kg	200001685
FT3TR1Q01	Size3",ACC±1.0%,WP1000PSi,Flow80-800GPM/18-181M3.H,WT11.35Kg	200001686
