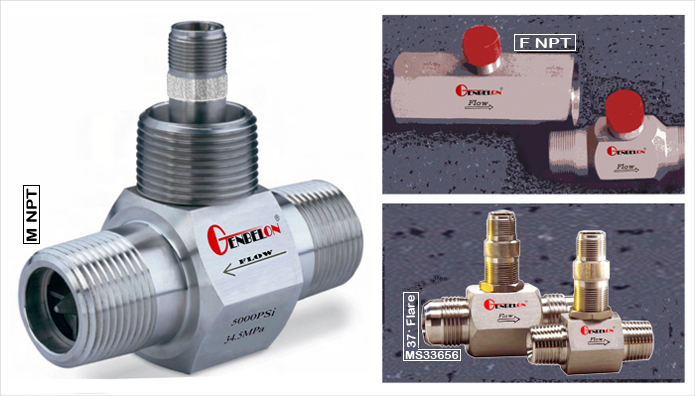

STD Type Threaded (M NPT) Turbine Flow Meter
$398Basic
Geenbellon Turbine Flow Meters can measure fluit in a closed pipe system and display flow rate and total flow in Volume unit in same time. the theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
*> Standard Male NPT Threaded Connection, Easy to install and uninstall in a pipe line and easy to find the mating material. .
*> The Max working pressure 5000PSi (34.5MPa)
*> the Tungsten Carbide/Ceramic hybrid ball bearings & shaft extend much longer of the usage life of Flow meter
*> High accuracy and High accuracy repeatable measurement
*> Rugged structure  to withstand continual rig up/down
*> Most economical solution for flow measurement applications
*> High frequency digital output easy interface with other digital equipment.
*> Wide temperature & Pressure Ranges
*> Wide flow range (Typically 10:1-50:1)
*> Minimum maintenance
*> Long service life, even in severe applications
Application
@ Water & dirty water measurement
@ Disposal wells
@ fuel and feed water
@ liquid fertilizer
@ fuel and chemical measurement in many field.
@ liquid propane
@ mining and leaching

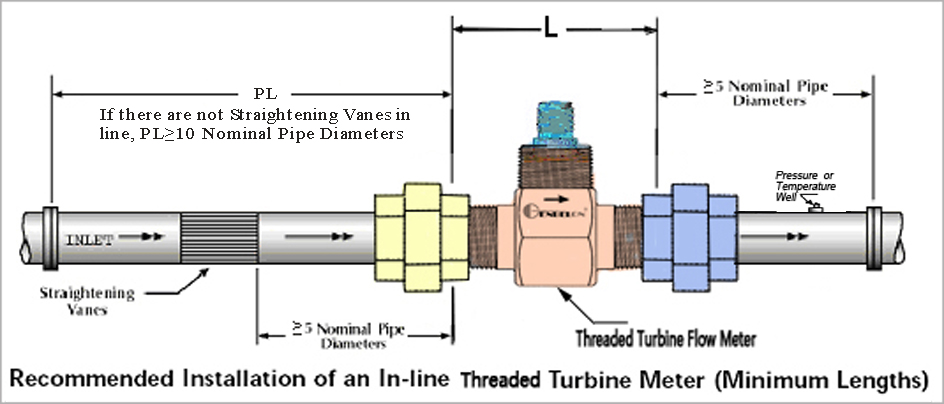

Installation Diagram

Brand
Geenbellon
Related Document
GIL-Products-List      Model-Selecting-Sheet
Model Model Description Part No. Quantity
  FT3/8x1/2TH1Q01A2   Size3/8",End1/2",¡À0.5%,WP5000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.0Kg 200001537
  FT3/8x1/2TH1Q01   Size3/8",End1/2",¡À1.0%,WP5000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.0Kg 200001538
  FT1/2TH1Q01A2   Size1/2",ACC¡À0.5%,WP5000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.0Kg 200001539
  FT1/2TH1Q01   Size1/2",ACC¡À1.0%,WP5000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.0Kg 200001540
  FT3/8x3/4TH1Q01A2   Size3/8",End3/4",¡À0.5%,WP5000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.15Kg 200001541
  FT3/8x3/4TH1Q01   Size3/8",End3/4",¡À1.0%,WP5000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.15Kg 200001542
  FT1/2x3/4TH1Q01A2   Size1/2",End3/4",¡À0.5%,5000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.15Kg 200001544
  FT1/2x3/4TH1Q01   Size1/2",End3/4",¡À1.0%,5000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.15Kg 200001544
  FT3/4TH1Q01A2   Size3/4",ACC¡À0.5%,WP5000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.15Kg 200001545
  FT3/4TH1Q01   Size3/4",ACC¡À1.0%,WP5000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.15Kg 200001546
  FT3/8x1TH1Q01A2   Size3/8",End1",¡À0.5%,WP5000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.35Kg 200001547
  FT3/8x1TH1Q01   Size3/8",End1",¡À1.0%,WP5000PSi,Flow0.3-3GPM/0.067-0.67M3.H,WT1.35Kg 200001548
  FT1/2x1TH1Q01A2   Size1/2",End1",¡À0.5%,WP5000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.35Kg 200001549
  FT1/2x1TH1Q01   Size1/2",End1",¡À1.0%,WP5000PSi,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.35Kg 200001550
  FT3/4x1TH1Q01A2   Size3/4",End1",ACC¡À0.5%,WP5000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.35Kg 200001551
  FT3/4x1TH1Q01   Size3/4",End1",ACC¡À1.0%,WP5000PSi,Flow2-15GPM/0.45-3.41M3.H,WT1.35Kg 200001552
  FT7/8x1TH1Q01A2   Size7/8",End1",ACC¡À0.5%,WP5000PSi,Flow3-30GPM/0.67-6.8H,WT1.35Kg 200001553
  FT7/8x1TH1Q01   Size7/8",End1",ACC¡À1.0%,WP5000PSi,Flow3-30GPM/0.67-6.8H,WT1.35Kg 200001554
  FT1TH1Q01A2   Size1",ACC¡À0.5%,WP4000PSi,Flow5-50GPM/1-11M3.H,WT1.35Kg 200001555
  FT1TH1Q01   Size1",ACC¡À1.0%,WP4000PSi,Flow5-50GPM/1-11M3.H,WT1.35Kg 200001556
  FT1.5TH1Q01A2   Size1.5",ACC¡À0.5%,WP2500PSi,Flow15-180/3-41M3.H,WT2.25Kg 200001557
  FT1.5TH1Q01   Size1.5",ACC¡À1.0%,WP2500PSi,Flow15-180/3-41M3.H,WT2.25Kg 200001558
  FT2TH1Q01A2   Size2",ACC¡À0.5%,WP2500PSi,Flow40-400GPM/9-90M3.H,WT5.85Kg 200001559
  FT2TH1Q01   Size2",ACC¡À1.0%,WP2000PSi,Flow40-400GPM/9-90M3.H,WT5.85Kg 200001560
  FT3TH1Q01A2   Size3",ACC¡À0.5%,WP1250PSi,Flow80-800GPM/18-181M3.H,WT7.25Kg 200001565
  FT3TH1Q01   Size3",ACC¡À1.0%,WP1250PSi,Flow80-800GPM/18-181M3.H,WT7.25Kg 200001566
  FT4TH1Q01A2   Size4",ACC¡À0.5%,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT29.25Kg 200002537
  FT4TH1Q01   Size4",ACC¡À1.0%,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT29.25Kg 200002538
If you would like to have a quotation on the products, please input Quantity then click ¡ú
