^$415Basic

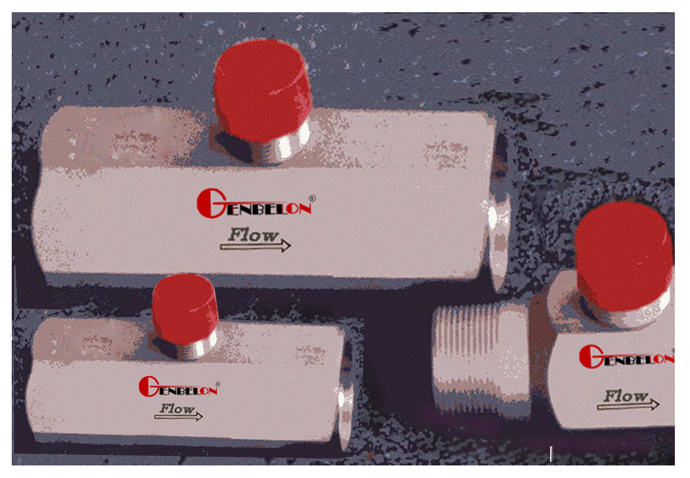

Geenbellon Turbine Flow Meters can measure fluid in a closed pipe system and display flow rate and total flow in Volume unit in same time. the theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
<> Standard Female NPT Threaded Connection, Easy to install and uninstall in a pipe line and easy to find the mating material.
<> The Max working pressure 5000PSi (34.5MPa)
<> the Tungsten Carbide/Ceramic hybrid ball bearings & shaft extend much longer of the usage life of Flow meter
<> High accuracy and High accuracy repeatable measurement
<> Rugged structure  to withstand continual rig up/down
<> Most economical solution for flow measurement applications
<> High frequency digital output easy interface with other digital equipment.
<> Wide temperature & Pressure Ranges
<> Wide flow range (Typically 10:1-50:1)
<> Minimum maintenance
<> Long service life, even in severe applications
Application
@ Injection of Water & dirty water measurement
@ Disposal wells
@ fuel and feed water
@ liquid fertilizer
@ fuel and chemical measurement in many field.
@ liquid propane
@ mining and leaching
Installation Diagram

Brand
Geenbellon
