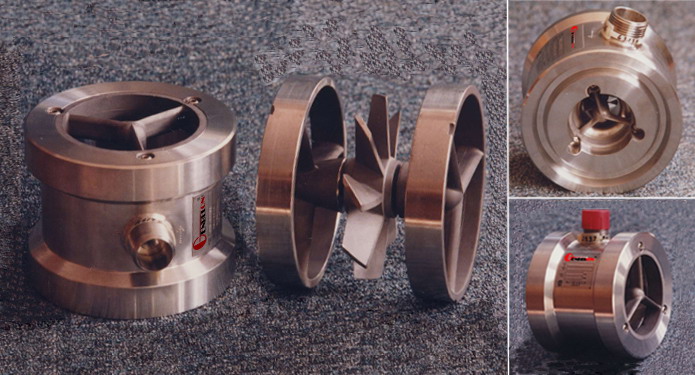

STD Between-Flanged Turbine Flow Meters
$486Basic
Geenbellon Turbine Flow Meters can measure fluid in a closed pipe system and display flow rate and total flow in Volume unit in same time. the theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate.
The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasion, and anticorrosion. So, it is applied widely in industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
* Between-Flanged connection for easy installing and reinstallment
*Saving space for installation and operation.
* Rugged enough to withstand continual rig up/down
* Accurate and repeatable measurement
* More economical solution for turbine flow meter applications
* Minimum maintenance, longest service life, even in severe applications
* Replacement of repair kits make a old flow meter new.
Applications
* Municipal Engineering
* Clean or Dirty Water Measurement
* Thousands of Liquid
* Mud & Cement Slurries

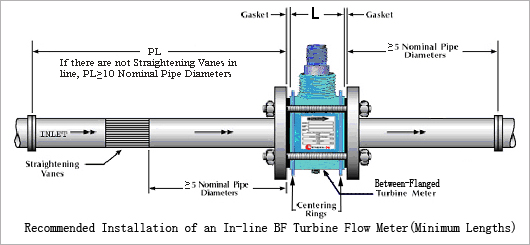

Installation Diagram

Related Document
GIL-Products-List      Model-Selecting-Sheet
Model Model Description Part No. Quantity
  FT3/8x1BF1Q01A2   Size3/8",End1"BF,ACC¡À0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT1.82Kg 200001161
  FT3/8x1BF1Q01   Size3/8",End1"BF,ACC¡À1.0%,Flow0.3-3GPM/0.067-0.67M3.H,WT1.82Kg 200001162
  FT3/8x2BF1Q01A2   Size3/8",End2"BF,ACC¡À0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT1.82Kg 200001163
  FT3/8x2BF1Q01   Size3/8",End2"BF,ACC¡À1.0%,Flow0.3-3GPM/0.067-0.67M3.H,WT1.82Kg 200001164
  FT1/2x1BF1Q01A2   Size1/2",End1"BF,ACC¡À0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.82Kg 200001165
  FT1/2x1BF1Q01   Size1/2",End1"BF,ACC¡À1.0%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.82Kg 200001166
  FT1/2x2BF1Q01A2   Size1/2",End2"BF,ACC¡À0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.82Kg 200001167
  FT1/2x2BF1Q01   Size1/2",End2"BF,ACC¡À1.0%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT1.82Kg 200001168
  FT3/4x1BF1Q01A2   Size3/4",End1"BF,ACC¡À0.5%,Flow2-15GPM/0.45-3.41M3.H,WT1.82Kg 200001169
  FT3/4x1BF1Q01   Size3/4",End1"BF,ACC¡À1.0%,Flow2-15GPM/0.45-3.41M3.H,WT1.82Kg 200001170
  FT3/4x2BF1Q01A2   Size3/4",End2"BF,ACC¡À0.5%,Flow2-15GPM/0.45-3.41M3.H,WT1.82Kg 200001171
  FT3/4x2BF1Q01   Size3/4",End2"BF,ACC¡À1.0%,Flow2-15GPM/0.45-3.41M3.H,WT1.82Kg 200001172
  FT7/8x1BF1Q01A2   Size7/8",End1"BF,ACC¡À0.5%,Flow3-30GPM/0.67-6.8H,WT1.82Kg 200001173
  FT7/8x1BF1Q01   Size7/8",End1"BF,ACC¡À1.0%,Flow3-30GPM/0.67-6.8H,WT1.82Kg 200001174
  FT7/8x2BF1Q01A2   Size7/8",End2"BF,ACC¡À0.5%,Flow3-30GPM/0.67-6.8H,WT1.82Kg 200001175
  FT7/8x2BF1Q01   Size7/8",End2"BF,ACC¡À1.0%,Flow3-30GPM/0.67-6.8H,WT1.82Kg 200001176
  FT1BF1Q01A2   Size1",ACC¡À0.5%,Flow15-180/3-41M3.H,WT1.82Kg 200001177
  FT1BF1Q01   Size1",ACC¡À1.0%,Flow5-50GPM/1-11M3.H,WT1.82Kg 200001178
  FT1x2BF1Q01A2   Size1",End2"RF,ACC¡À0.5%,Flow15-180/3-41M3.H,WT1.82Kg 200001179
  FT1x2BF1Q01   Size1",End2"RF,ACC¡À1.0%,Flow5-50GPM/1-11M3.H,WT1.82Kg 200001180
  FT1.5BF1Q01A2   Size1.5",ACC¡À0.5%,Flow15-180/3-41M3.H,WT2.72Kg 200001181
  FT1.5BF1Q01   Size1.5",ACC¡À1.0%,Flow15-180/3-41M3.H,WT2.72Kg 200001182
  FT2BF1Q01A2   Size2",ACC¡À0.5%,Flow40-400GPM/9-90M3.H,WT2.72Kg 200001183
  FT2BF1Q01   Size2",ACC¡À1.0%,Flow40-400GPM/9-90M3.H,WT2.72Kg 200001184
  FT3BF1Q01A2   Size3",ACC¡À0.5%,Flow80-800GPM/18-181M3.H,WT7.26Kg 200001185
  FT3BF1Q01   Size3",ACC¡À1.0%,Flow80-800GPM/18-181M3.H,WT7.26Kg 200001186
  FT4BF1Q01A2   Size4",ACC¡À0.5%,Flow100-1200GPM/23-271M3.H,WT12.3Kg 200001187
  FT4BF1Q01   Size4",ACC¡À1.0%,Flow100-1200GPM/23-271M3.H,WT12.3Kg 200001188
  FT6BF1Q01A2   Size6",ACC¡À0.5%,Flow200-2500GPM/45-583M3.H,WT22.7Kg 200001189
  FT6BF1Q01   Size6",ACC¡À1.0%,Flow200-2500GPM/45-583M3.H,WT22.7Kg 200001190
  FT8BF1Q01A02   Size8",ACC¡À0.5%,Flow350-3500GPM/79-795M3.H,WT29.5Kg 200001191
  FT8BF1Q01   Size8",ACC¡À1.0%,Flow350-3500GPM/79-795M3.H,WT29.5Kg 200001192
  FT10BF1Q01A2   Size10",ACC¡À0.5%,Flow500-5000GPM/114-1140M3.H,WT36.8Kg 200001193
  FT10BF1Q01   Size10",ACC¡À1.0%,Flow500-5000GPM/114-1140M3.H,WT36.8Kg 200001194
  FT1x2BJ1Q01A2   Size1",End2"CL1500RTJ,ACC¡À0.5%,Flow15-180/3-41M3.H,WT1.82Kg 200001195
  FT1x2BJ1Q01   Size1",End2"CL1500RTJ,ACC¡À1.0%,Flow5-50GPM/1-11M3.H,WT1.82Kg 200001198
  FT1x2BJ2Q01A2   Size1",End2"CL2500RTJ,ACC¡À0.5%,Flow15-180/3-41M3.H,WT1.82Kg 200001197
  FT1x2BJ2Q01   Size1",End2"CL2500RTJ,ACC¡À1.0%,Flow5-50GPM/1-11M3.H,WT1.82Kg 200001198
  FT1.5x2BJ1Q01A2   Size1.5",End2"CL1500RTJ,ACC¡À0.5%,Flow15-180/3-41M3.H,WT2.72Kg 200001199
  FT1.5x2BJ1Q01   Size1.5",End2"CL1500RTJ,ACC¡À1.0%,Flow15-180/3-41M3.H,WT2.72Kg 200001200
  FT1.5x2BJ2Q01A2   Size1.5",End2"CL2500RTJ,ACC¡À0.5%,Flow15-180/3-41M3.H,WT2.72Kg 200001201
  FT1.5x2BJ2Q01   Size1.5",End2"CL2500RTJ,ACC¡À1.0%,Flow15-180/3-41M3.H,WT2.72Kg 200001202
  FT2BJ1Q01A2   Size2",CL1500RTJ,ACC¡À0.5%,Flow40-400GPM/9-90M3.H,WT2.72Kg 200001203
  FT2BJ1Q01   Size2",CL1500RTJ,ACC¡À1.0%,Flow40-400GPM/9-90M3.H,WT2.72Kg 200001202
  FT2BJ2Q01A2   Size2",CL2500RTJ,ACC¡À0.5%,Flow40-400GPM/9-90M3.H,WT2.72Kg 200001205
  FT2BJ2Q01   Size2",CL2500RTJ,ACC¡À1.0%,Flow40-400GPM/9-90M3.H,WT2.72Kg 200001206
  FT3BJ1Q01A2   Size3",CL1500RTJ,ACC¡À0.5%,Flow80-800GPM/18-181M3.H,WT7.26Kg 200001207
  FT3BJ1Q01   Size3",CL1500RTJ,ACC¡À1.0%,Flow80-800GPM/18-181M3.H,WT7.26Kg 200001208
  FT3BJ2Q01A2   Size3",CL2500RTJ,ACC¡À0.5%,Flow80-800GPM/18-181M3.H,WT7.26Kg 200001209
  FT3BJ2Q01   Size3",CL2500RTJ,ACC¡À1.0%,Flow80-800GPM/18-181M3.H,WT7.26Kg 200001210
  FT4BJ1Q01A2   Size4",CL1500RTJ,ACC¡À0.5%,Flow100-1200GPM/23-271M3.H,WT12.3Kg 200001211
  FT4BJ1Q01   Size4",CL1500RTJ,ACC¡À1.0%,Flow100-1200GPM/23-271M3.H,WT12.3Kg 200001212
  FT4BJ2Q01A2   Size4",CL2500RTJ,ACC¡À0.5%,Flow100-1200GPM/23-271M3.H,WT12.3Kg 200001213
  FT4BJ2Q01   Size4",CL2500RTJ,ACC¡À1.0%,Flow100-1200GPM/23-271M3.H,WT12.3Kg 200001214
  FT6BJ1Q01A2   Size6",CL1500RTJ,ACC¡À0.5%,Flow200-2500GPM/45-583M3.H,WT22.7Kg 200001215
  FT6BJ1Q01   Size6",CL1500RTJ,ACC¡À1.0%,Flow200-2500GPM/45-583M3.H,WT22.7Kg 200001216
  FT6BJ2Q02A2   Size6",CL2500RTJ,ACC¡À0.5%,Flow200-2500GPM/45-583M3.H,WT22.7Kg 200001217
  FT6BJ2Q01   Size6",CL2500RTJ,ACC¡À1.0%,Flow200-2500GPM/45-583M3.H,WT22.7Kg 200001218
  FT8BJ1Q01A02   Size8",CL1500RTJ,ACC¡À0.5%,Flow350-3500GPM/79-795M3.H,WT29.5Kg 200001219
  FT8BJ1Q01   Size8",CL1500RTJ,ACC¡À1.0%,Flow350-3500GPM/79-795M3.H,WT29.5Kg 200001220
  FT8BJ2Q01A2   Size8",CL2500RTJ,ACC¡À0.5%,Flow350-3500GPM/79-795M3.H,WT29.5Kg 200001221
  FT8BJ2Q01   Size8",CL2500RTJ,ACC¡À1.0%,Flow350-3500GPM/79-795M3.H,WT29.5Kg 200001222
  FT10BJ1Q01A2   Size10",CL1500RTJ,ACC¡À0.5%,Flow500-5000GPM/114-1140M3.H,WT36.8Kg 200001223
  FT10BJ1Q01   Size10",CL1500RTJ,ACC¡À1.0%,Flow500-5000GPM/114-1140M3.H,WT36.8Kg 200001224
  FT10BJ2Q01A2   Size10",CL2500RTJ,ACC¡À0.5%,Flow500-5000GPM/114-1140M3.H,WT36.8Kg 200001227
  FT10BJ2Q01   Size10",CL2500#,ACC¡À1.0%,Flow500-5000GPM/114-1140M3.H,WT36.8Kg 200001226
If you would like to have a quotation on the products, please input Quantity then click ¡ú
