Cement-Slurries WECO connection & Super-High-Pressure Turbine Flow Meters

^$3870Basic
Geenbellon Turbine Flow Meters can measure Instantanous Flow Rate and Accumulated Flow in a closed pipe system and display these data in Volume Unit in same time. The theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate. The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasive, and anticorrosive. So, it is applied widely in the field of Industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

The repair kits of Geenbellon^TM Cement-Slurries Turbine flow meter are modified by removing half the blades from the vanes and the rotors. The modification allows larger particles to pass through the meter which reduces preeure loss and improves kits life.The kits fit any Geenbellon turbine flow meter body.
Features

<> Bearing high pressure for the oil-field application
<> Rugged enough to withstand continual rig up/down
<> Accurate and repeatable measurement
<> Economical solution for turbine flow meter applications
<> WECO Union for quick and easy installation
<> Minimum maintenance
<> Long service life, even in severe applications

Application

<> Oilwell Fracturing

<> High Pressure Measuring

<> Cement Slurries Measuring

Medium for Measured

Technical Parameters
Accuracy: +/- 1.0%
Repeatability: +/- 0.05%
Magnetic Pickups: 1 or 2 ea, for local and remote Monitoring
Temperature Range (magnetic pickup):
@ Standard -67 to 250°F (-55 to 120°C)
@ Medium -67 to 450°F (-55 to 230°C)
--Required to mate with high temperature Pickup
Output Connection: AN3106A-10SL-4S / AN3106A-10SL-3S
Working Pressure
Weco 602 End Connection - 6,000Psi（41.4MPa, Sour Medium）; 6,000Psi（41.4MPa, Sweet Medium）
Weco 1502 End Connection - 10,000Psi（70MPa Sour Medium）; 15,000Psi（103MPa, Sweet Medium）
Weco 2002 End Connection - Not suit for Sour Medium; 20,000Psi（137.9MPa）
MATERIALS
Meter Body: 304L/316L stainless steel (Optional, Depends on the fluid measured)
Meter Vanes: 304L/316L stainless steel
Union Nut: carbon steel/or Stainless Steel
Magnetic pickup Shell: 300 Serial stainless steel
Optional materials
* Shaft Binderless carbide for enhanced corrosion resistance to selected chemicals Silver/Cupper brazing to withstand temperatures to 450°F and chemicals that attack epoxy bonding bearing materials
* Rotor Nickel plating for enhanced corrosion resistance to selected chemicals (especially acids that corrode ferrous
Compliance
*CSA Certified Harzardous Locations Class I, Group A,B,C,D,Div.1
*NACE MR01-75(NACE traceability available on request.)

Meter Size Selection
Geenbellon Turbine Flow Meters bore size selection do not depend on size of the pipe-line the meter will be mounted in, it must be decided on the instantaneous flow rate in the pipe-line.

Note: 1.The data above is based on Water-Calibration.
2. The best linear flow range for Non-lubricating Liquid is at upper 60% of the standard range.
3. Consult factory for engineering assistance when the viscosities of the liquids measured greater than 5 centistokes.

Model No. Definition

Note：①. Model No. is composed of letters plus numbers regularly. ②. There are not conflicts between the various elements of the model cannot be allowed. For example, the selection of high temperature turbine body in previous position, the following position is the choice of standard temperature pickups. As to detailed information, please refer to the related section in manual or enquires with the manufacturers. ③. When you select more than 1 pickup and flow analyzer to work at the same time, in the No. 9 and No. 10 position, express method is flow analyzer model & installation mode + ... ④. In order to save costs, Geenbellon assists the user make a basic options selection on flow analyzer and flow computer under common conditions. If having special needs, marked ( ) with the corresponding position of the model, while the technical details is required to list in the technical agreement, quotation or contract.

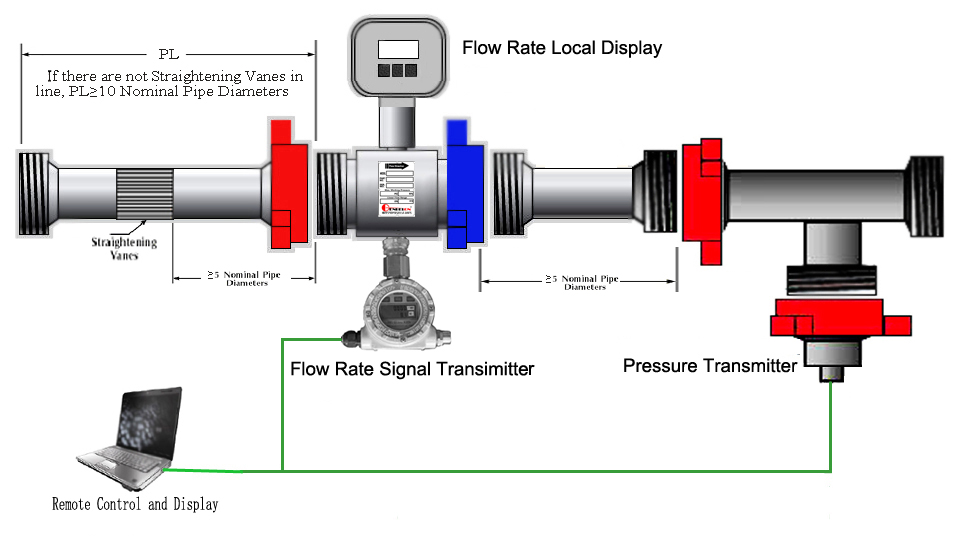

Installation Diagram

Word Explanation
STD = Standard Type || Size = Nominal Bore Size || End = End Connction Size || Flow = Flow Range || GPM = Gallon Per Minute || M3.H = Cubic Meter Per Hour || WT = Net Weight

Model	Model Description	Part No.	Quantity
FT2WU2Q9	Size2",End2"Fig602,Flow40-400GPM/9-90M3.H,Wt15Kg	200002190
FT2xD2WU2Q9	Size2",End:D2Fig1502,Flow40-400GPM/9-90M3.H,Wt15Kg	200002320
FT3WU2Q9	Size3",End3"Fig602,Flow80-800GPM/18-181M3.H,Wt15Kg	200002191
FT4WU2Q9	Size4",End4"Fig602,Flow100-1200GPM/23-271M3.H,Wt19Kg	200002192
FT2WU5Q9	Size2",End2"Fig1502,Flow40-400GPM/9-90M3.H,Wt15Kg	200002193
FT2xD2WU5Q9	Size2",End:D2"Fig1502,Flow40-400GPM/9-90M3.H,Wt15Kg	200002321
FT3WU5Q9	Size3",End3"Fig1502,Flow80-800GPM/18-181M3.H,Wt22Kg	200002194
FT3xE3WU5Q9	Size3",End:E3"Fig1502,Enhanced RepairKit,Flow80-800GPM/18-181M3.H,Wt22Kg	200002460
FT4WU5Q9	Size4",End4"Fig1502,Flow100-1200GPM/23-271M3.H,Wt29Kg	200002195
FT2WU6Q9	Size2",End2"Fig2002,Flow40-400GPM/9-90M3.H,Wt15Kg	200002196
FT2xD2WU6Q9	Size2",End:D2"Fig2002,Flow40-400GPM/9-90M3.H,Wt22Kg	200002322
FT3WU6Q9	Size3",End3"Fig2002,Flow80-800GPM/18-181M3.H,Wt39Kg	200002197
