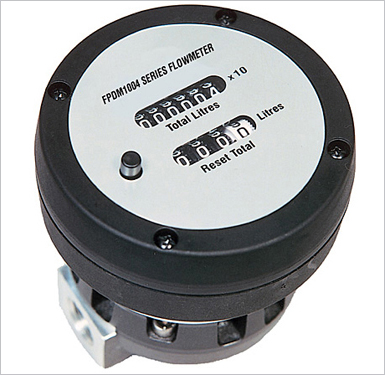

$272Basic The mechanical oval gear FPDM1000 Series is available in NPT or Flange connections. This meter is ideally suited for viscous fluids which are difficult to meter with a turbine type flowmeter. Choose from either Aluminum or 316 Stainless Steel body. The FPDM1000 Series can handle a wide range of fluid viscosities. These positive displacement flow meters are ideal for many flow measurement applications.Features<> 0 to 1,000 cps Viscosity Standard, 1,000,000 cps Viscosity Rotor Available <> Cumulative and Resettable Totals <> Meter Design Minimizes the Number of Wearable Parts Extending Product Life <> Handles Particle Sizes to 0.28 mm (0.011") on 1/2" and 1" Sizes, 0.38 mm (0.015") on Larger SizesApplications* Clean Fluit* Gasoline* DieselBrandGeenbellonInstruction Specially
