Cement-Slurries Grooved Turbine Flow Meter

^$923Basic
Geenbellon Turbine Flow Meters can measure Instantanous Flow Rate and Accumulated Flow in a closed pipe system and display these data in Volume Unit in same time. The theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate. The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasive, and anticorrosive. So, it is applied widely in the field of Industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features

<> Standard grooved connection for easy installing and reinstallment
<> Rugged enough to withstand continual rig up/down
<> Accurate and repeatable measurement
<> Economical solution for turbine flow meter applications
<> Minimum maintenance, longest service life, even in severe applications
<> Replacement of repair kits make a old flow meter new.

Applications

<> Municipal Engineering
<> Clean or Dirty Water Measurement

<> Thousands of Liquid

<> Mud & Cement Slurries
Medium for Measured

Technical Parameters
Accuracy: +/- 0.5%
Repeatable: +/- 0.05%
End Connection: ANSI SS/CS 2500# Flange
Working Pressure: Max.6170 PSi (42.5MPa) @ 20℃
Working Tempreture: -65 to 450 ℉ (-55 to 232 ℃)
Pickup Connection: AN3106A-10SL-4S/3S (MIL STD Two/Three Holes Plug)
Magnetic Sensors: 1ea/2ea(Optional) Provide the STD signal for loacal/romote diaplay equipment.
@Structure of Internal repair Kits: Y Serial
@Material
Body: Stainless Steel 304/316L (Depend on the fluid measured)
Vane: 304/316L
Shaft&Bearing: Tungsten Carbide
@Pickup:
Body: 300 Serial Stainless Steel
Compliance
*CSA Certified Harzardous Locations Class I, Group A,B,C,D,Div.1
*NACE MR01-75(NACE traceability available on request.)

Meter Size Selection
Geenbellon Turbine Flow Meters bore size selection do not depend on size of the pipe-line the meter will be mounted in, it must be decided on the instantaneous flow rate in the pipe-line.

Note: 1.The data above is based on Water-Calibration.
2. The best linear flow range for Non-lubricating Liquid is at upper 60% of the standard range.
3. Consult factory for engineering assistance when the viscosities of the liquids measured greater than 5 centistokes.

Model No. Definition

Note：①. Model No. is composed of letters plus numbers regularly. ②. There are not conflicts between the various elements of the model cannot be allowed. For example, the selection of high temperature turbine body in previous position, the following position is the choice of standard temperature pickups. As to detailed information, please refer to the related section in manual or enquires with the manufacturers. ③. When you select more than 1 pickup and flow analyzer to work at the same time, in the No. 9 and No. 10 position, express method is flow analyzer model & installation mode + ... ④. In order to save costs, Geenbellon assists the user make a basic options selection on flow analyzer and flow computer under common conditions. If having special needs, marked ( ) with the corresponding position of the model, while the technical details is required to list in the technical agreement, quotation or contract.

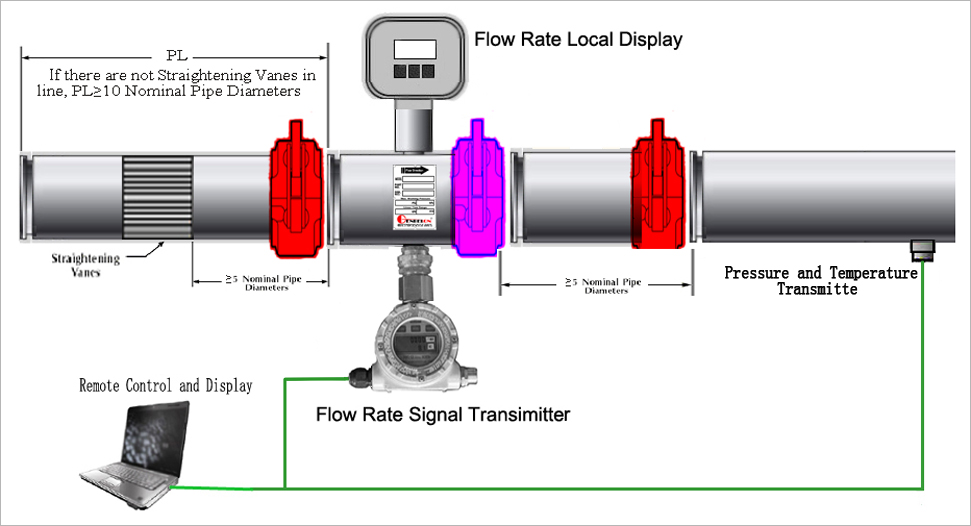

Installation Diagram

Related Document
GIL-Products-List Model-Selecting-Sheet

Model	Model Description	Part No.	Quantity
FT7/8x1GR1Q09	Size7/8",End1",WP1000PSi,Flow3-30GPM/0.7-6.8M3.H,WT0.9Kg	200001472
FT1GR1Q09	Size1",WP1000PSi,Flow5-50GPM/1-11M3.H,WT0.9Kg	200001473
FT1.5GR1Q09	Size1.5",WP1000PSi,Flow15-180GPM/3-41M3.H,WT3.2Kg	200001474
FT1.5x2GR1Q09	Size1.5",End2",WP2500PSi,Flow15-180GPM/3-41M3.H,WT3.2Kg	200001475
FT2x2.5GR1Q09	Size2",End2.5,WP2500PSi,Flow40-400GPM/9-90M3.H,WT5.9Kg	200001476
FT3GR1Q09	Size3",WP1000PSi,Flow80-800GPM/18-181M3.H,WT11.35Kg	200001477
FT3GR1Q09PC2	Size3",2conduits,WP1000PSi,Flow80-800GPM/18-181M3.H,WT11.35Kg	200001478
FT4GR1Q09	Size4",WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001479
FT4GR1Q09PC2%	Size4",2Conduits(90°),WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001480
FT4GR1Q09PC3	Size4",3Conduits,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001481
FT4x6GR1Q09PC2#	Size4",End6"Flange,2CDs,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001482
FT4x6GR1Q09PC3#	Size4",End6"Flange,3CDs,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001483
FT4x8GR1Q09PC2#	Size4",End8"Flange,2CDs,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001484
FT4x8GR1Q09PC3#	Size4",End8"Flange,3CDs,WP1000PSi,Flow100-1200GPM/23-271M3.H,WT9.1Kg	200001485
FT6GR1Q09	Size6",WP800PSi,Flow200-2500GPM/45-583M3.H,WT15.9Kg	200001486
FT6GR1Q09PC2%	Size6",2Condulits(90°),WP800PSi,Flow200-2500GPM/45-583M3.H,WT15.9Kg	200001487
FT6GR1Q09PC4	Size6",4Condulits,WP800PSi,Flow200-2500GPM/45-583M3.H,WT15.9Kg	200001488
FT6x8GR1Q09PC2%#	Size6",8"Flg,2CDs_90°,WP800PSi,Flow200-2500GPM/45-583M3.H,WT15.9Kg	200001489
FT6x8GR1Q09PC3#	Size6",End8"Flange,3CDs,WP800PSi,Flow200-2500GPM/45-583M3.H,WT15.9Kg	200001490
FT8GR1Q09	Size8",WP800PSi,Flow350-3500GPM/79-795M3.H,WT27.3Kg	200001491
FT8GR1Q09PC2%	Size8",2Condulits(90°),WP800PSi,Flow350-3500GPM/79-795M3.H,WT27.3Kg	200001492
FT8GR1Q09PC3	Size8",3Condulits,WP800PSi,Flow350-3500GPM/79-795M3.H,WT27.3Kg	200001493
FT8GR1Q09PC4	Size8",4Condulits,WP800PSi,Flow350-3500GPM/79-795M3.H,WT27.3Kg	200001494
FT10GR1Q09	Size10",WP800PSi,Flow500-5000GPM/114-1140M3.H,WT29Kg	200001495
FT10GR1Q09PC2%	Size10",2Conduits(90°),WP800PSi,Flow500-5000GPM/114-1140M3.H,WT29Kg	200001496
FT10GR1Q09PC3	Size10",3Conduits,WP800PSi,Flow500-5000GPM/114-1140M3.H,WT29Kg	200001497
FT10GR1Q09PC4	Size10",4Conduits,WP800PSi,Flow500-5000GPM/114-1140M3.H,WT29Kg	200001498
If you would like to have a quotation on the products, please input Quantity then click →
