$1649Basic

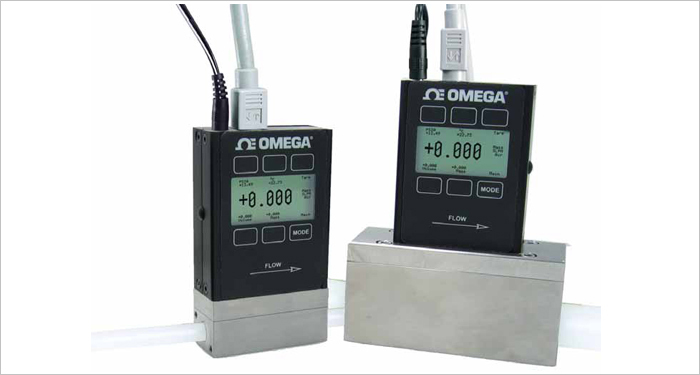

The FM-1600A Series mass and volumetric flowmeters use the principle of differential pressure within a laminar flow field to deterime the mass flow rate. A laminar flow element (LFD) insdie the meter forces the gas into laminar (streamlined) flow. Inside this region, the Poiseuille equation dictates that the volumetric flow rate be linearly related to the pressure drop along a fixed distance of the LFE. This, along with the viscosity of the gas, is used to accurately determine the volumetri flow rate. Separate absolute temperature and pressure sensors are incorporated and correct the volumetric flow rate to a set of standard conditions. This standardized flow rate is commonly called the mass flow rate and is reported in units such as standard cubic feet per minute (SCFM) or standard liters per minute (SLM).
Standard units include a 0 to 5 V output (4 to 20 mA optional) and RS232 communications. The gas select feature can be adjusted from the front of the keypad or via RS232 communications. Volumetric flow, mass flow, or absolute pressure, and temperature can be viewed or recorded through the RS232 connection. It is also possible to multi-drop up to 26 units on the same serial connection to a distance of 125'. These flowmeters are also available in a portable version for use in the field.
Features
*> Ranges of 0 to 0.5 SCCM Up to 0 to 1500 SLPM
*> FM-1600A Reports Flow,Temperature, and Pressure
*> <10 ms Response Time-Field Adjustable
*> 20+ Gas Calibrations*> NIST 5-Point Certificate Included
*> No Straight Runs of Pipe Required
*> No Warm-Up Time
*> Turndown Ratio of 100:1
*> RS232 Standar
Appilcations
Air, Ar, CH4, CO, CO2, Ethane, H2, He,N2, N2O, Neon, O2, Propane, Butane, Iso-Butane, Acetylene, Ethylene, Krypton, Xenon, and Sulfur Hexafluoride
Standard Pressure Drops (venting to atmosphere):
Max Flow Rate |
0.5 to 50 SCCM |
0.1 to 10 SLM |
20 SLM |
50 SLM |
100 SLM |
250 SLM |
500 SLM |
1000 SLM |
1500 SLM |
PSID |
1 |
1 |
1 |
2 |
2.5 |
4.0 |
5.5 |
6.0 |
9.0 | | | |
|
|
