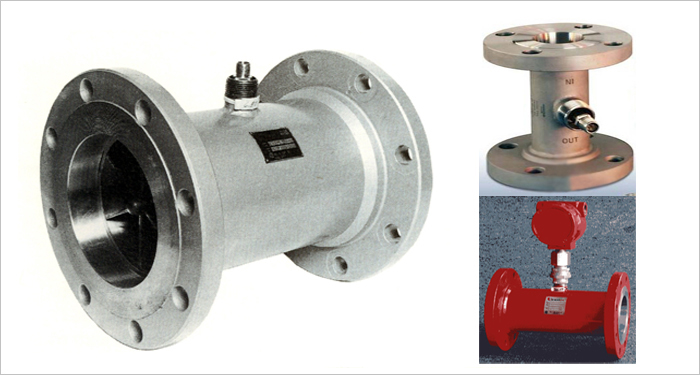

STD ANSI 150# Flanged Turbine Flow Meter
$1557Basic
Geenbellon Turbine Flow Meters can measure Instantanous Flow Rate and accumulated flow in a closed pipe system and display these data in Volume Unit in same time. The theory of this type flow meter is that the flowing medium engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate Within the turbine flow meter. The pickup coil senses the spinning motion of the rotor through the housing and converts it into a pulsing electrical signal. Totalling the pulsing electrical signal directly yields to the total flow, while the frequency is linearly related to the flow rate. The flow meter is featured that it is tough for an applications in severe condition with high accuracy, light weight, interface flexible, anti-abrasive, and anticorrosive. So, it is applied widely in the field of Industry, Municipal, Agriculture, Military engineering. The production introduced as below is one of all models.

Features
<> Standard ANSI Flange Connection, Easy to install and uninstall in a pipe line and easy to get the mating material;
<> The Max working pressure ANSI 150# flange 285 PSi (1.96 MPa);
<> The Tungsten Carbide/Ceramic hybrid ball bearings & shaft extend much longer of the usage life of Flow meter;
<> High accuracy and High accuracy repeatable measurement;
<> Rugged structure  to withstand continual rig up/down;
<> Most economical solution for flow measurement applications;
<> High frequency digital output easy interface with other digital equipment;
<> Symmetrical Bi-directional Design;
<> Wide temperature & Pressure Ranges;
<> Wide flow range (Typically 10:1-50:1);
<> Minimum maintenance;
<> Long service life, even in severe applications.
Application
@ Water & dirty water measurement
@ Disposal wells
@ fuel and feed water
@ liquid fertilizer
@ fuel and chemical measurement in many field.
@ liquid propane
@ mining and leaching
Medium for Measured

Technical Parameters
Accuracy: +/- 1.0%; +/- 0.5%
Repeatable: +/- 0.05%
End Connection: ANSI SS/CS 150# Flange
Working Pressure: Max.285 PSi (1.96 MPa) @ 20 ℃
Working Tempreture: -65 to 450 ℉ (-55 to 232 ℃)
Pickup Connection: AN3106A-10SL-4S/3S (MIL STD Two/Three Holes Plug)
Magnetic Sensors: 1ea/2ea(Optional) Provide the STD signal for loacal/romote diaplay equipment.
@Structure of Internal repair Kits: Y Serial
@Material
Body: Stainless Steel 304/316L (Depend on the fluid measured)
Vane: 304/316L
Shaft&Bearing: Tungsten Carbide
@Pickup:
Body: 300 Serial Stainless Steel
Compliance
*CSA Certified Harzardous Locations Class I, Group A,B,C,D,Div.1
*NACE MR01-75(NACE traceability available on request.)
Meter Size Selection
Geenbellon Turbine Flow Meters bore size selection do not depend on size of the pipe-line the meter will be mounted in, it must be decided on the instantaneous flow rate in the pipe-line.

Note: 1.The data above is based on Water-Calibration.
2. The best linear flow range for Non-lubricating Liquid is at upper 60% of the standard range.
3. Consult factory for engineering assistance when the viscosities of the liquids measured greater than 5 centistokes.
ANSI B16.5 Flanges Selection

Model No. Definition

Note：①. Model No. is composed of letters plus numbers regularly. ②. There are not conflicts between the various elements of the model cannot be allowed. For example, the selection of high temperature turbine body in previous position, the following position is the choice of standard temperature pickups. As to detailed information, please refer to the related section in manual or enquires with the manufacturers. ③. When you select more than 1 pickup and flow analyzer to work at the same time, in the No. 9 and No. 10 position, express method is flow analyzer model & installation mode + ... ④. In order to save costs, Geenbellon assists the user make a basic options selection on flow analyzer and flow computer under common conditions. If having special needs, marked ( ) with the corresponding position of the model, while the technical details is required to list in the technical agreement, quotation or contract.
Installation Diagram

Related Documents for downloading

Geenbellon Products List                 Model Selection Table


Words Explanation
STD = Standard Type || ACC = Accuracy || Size = Nominal Bore Size || End = End Connction Size || Flow = Flow Range || GPM = Gallon Per Minute || M3.H = Cubic Meter Per Hour || WT = Weight in Kilogram
RFSS = Stainless Steel Flange w/Raised Face, the size of flange is 150#, 300#, 600#, 900#, 1500#, 2500#
RFCS = Carbon Steel Flange w/Ring Joint, the size of flange is 600#, 900#, 1500#, 2500#
RJSS = Stainless Steel Flange w/Raised Face, the size of flange is 150#, 300#, 600#, 900#, 1500#, 2500#
RJCS = Carbon Steel Flange w/Ring Joint, the size of flange is 600#, 900#, 1500#, 2500#

Model Model Description Part No. Quantity
  FT3/8x1/2SF1Q1A2   Size3/8",End1/2",RFSS,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT2.5Kg 200000680
  FT1/2SF1Q01A2   Size1/2",RFSS,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT2.5Kg 200000681
  FT3/4SF1Q01A2   Size3/4",RFSS,ACC±0.5%,Flow2-15GPM/0.45-3.41M3.H,WT2.5Kg 200000682
  FT7/8x1SF1Q01A2   Size7/8",End1",RFSS,ACC±0.5%,Flow3-30GPM/0.67-6.8H,WT3.63Kg 200000683
  FT1SF1Q01A2   Size1",RFSS,ACC±0.5%,Flow5-50GPM/1-11M3.H,WT3.63Kg 200000684
  FT1.5SF1Q01A2   Size1.5",RFSS,ACC±0.5%,Flow15-180/3-41M3.H,WT6.8Kg 200000685
  FT2SF1Q01A2   Size2",RFSS,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT11.35Kg 200000686
  FT3SF1Q01A2   Size3",RFSS,ACC±0.5%,Flow80-800GPM/18-181M3.H,WT15.9Kg 200000687
  FT4SF1Q01A2   Size4",RFSS,ACC±0.5%,Flow100-1200GPM/23-271M3.H,WT22.7Kg 200000688
  FT6SF1Q01A2   Size6",RFSS,ACC±0.5%,,Flow200-2500GPM/45-583M3.H,WT34.5Kg 200000689
  FT8SF1Q01A2   Size8",RFSS,ACC±0.5%,Flow350-3500GPM/79-795M3.H,WT50Kg 200000690
  FT10SF1Q01A2   Size10",RFSS,ACC±0.5%,Flow500-5000GPM/114-1140M3.H,WT55Kg 200000691
  FT3/8x1/2CF1Q01A2   Size3/8",End1/2",RFCS,ACC±0.5%,Flow0.3-3GPM/0.067-0.67M3.H,WT2.5Kg 200000692
  FT1/2CF1Q01A2   Size1/2",RFCS,ACC±0.5%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT2.5Kg 200000693
  FT3/4CF1Q01A2   Size3/4",RFCS,ACC±0.5%,Flow2-15GPM/0.45-3.41M3.H,WT2.5Kg 200000694
  FT7/8x1CF1Q01A2   Size7/8",End1",RFCS,ACC±0.5%,Flow3-30GPM/0.6-6.8M3.H,WT3.63Kg 200000695
  FT1CF1Q01A2   Size1",RFCS,ACC±0.5%,Flow5-50GPM/1-11M3.H,WT3.63Kg 200000696
  FT1.5CF1Q01A2   Size1.5",RFCS,ACC±0.5%,Flow15-180/3-41M3.H,WT6.8Kg 200000697
  FT2CF1Q01A2   Size2",RFCS,ACC±0.5%,Flow40-400GPM/9-90M3.H,WT11.35Kg 200000698
  FT3CF1Q01A2   Size3",RFCS,ACC±0.5%,Flow80-800GPM/18-181M3.H,WT15.9Kg 200000699
  FT4CF1Q01A2   Size4",RFCS,ACC±0.5%,,Flow100-1200GPM/23-271M3.H,WT22.7Kg 200000700
  FT6CF1Q01A2   Size6",RFCS,ACC±0.5%,,Flow200-2500GPM/45-583M3.H,WT34.05Kg 200000701
  FT8CF1Q01A2   Size8",RFCS,ACC±0.5%,,Flow350-3500GPM/79-795M3.H,WT50Kg 200000702
  FT10CF1Q01A2   Size10",RFCS,ACC±0.5%,Flow500-5000GPM/114-1140M3.H,WT55Kg 200000703
  FT6SF1Q01   Size6",RFSS,ACC±1.0%,,Flow200-2500GPM/45-583M3.H,WT34.05Kg 200000930
  FT3/8x1/2SF1Q01   Size3/8",End1/2",RFSS,ACC±1.0%,Flow0.3-3GPM/0.067-0.67M3.H,WT2.5Kg 200000921
  FT1/2SF1Q01   Size1/2",RFSS,ACC±1.0%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT2.5Kg 200000922
  FT3/4SF1Q01   Size3/4",RFSS,ACC±1.0%,Flow2-15GPM/0.45-3.41M3.H,WT2.5Kg 200000923
  FT7/8x1SF1Q01   Size7/8",End1",RFSS,ACC±1.0%,Flow3-30GPM/0.67-6.8H,WT3.63Kg 200000924
  FT1SF1Q01   Size1",RFSS,ACC±1.0%,Flow5-50GPM/1-11M3.H,WT3.63Kg 200000925
  FT1.5SF1Q01   Size1.5",RFSS,ACC±1.0%,Flow15-180/3-41M3.H,WT6.8Kg 200000926
  FT2SF1Q01   Size2",RFSS,ACC±1.0%,Flow40-400GPM/9-90M3.H,WT11.35Kg 200000927
  FT3SF1Q01   Size3",RFSS,ACC±1.0%,Flow80-800GPM/18-181M3.H,WT15.9Kg 200000928
  FT4SF1Q01   Size4",RFSS,ACC±1.0%,Flow100-1200GPM/23-271M3.H,WT22.7Kg 200000929
  FT8SF1Q01   Size8",RFSS,ACC±1.0%,Flow350-3500GPM/79-795M3.H,WT50Kg 200000931
  FT10SF1Q01   Size10",RFSS,ACC±1.0%,Flow500-5000GPM/114-1140M3.H,WT55Kg 200000932
  FT3/8x1/2CF1Q01   Size3/8",End1/2",RFCS,ACC±1.0%,Flow0.3-3GPM/0.067-0.67M3.H,WT2.5Kg 200000933
  FT1/2CF1Q01   Size1/2",RFCS,ACC±1.0%,Flow0.75-7.5GPM/0.167-1.67M3.H,WT2.5Kg 200000934
  FT3/4CF1Q01   Size3/4",RFCS,ACC±1.0%,Flow2-15GPM/0.45-3.41M3.H,WT2.5Kg 200000935
  FT7/8x1CF1Q01   Size7/8",End1",RFCS,ACC±1.0%,Flow3-30GPM/0.6-6.8M3.H,WT3.63Kg 200000836
  FT1CF1Q01   Size1",RFCS,ACC±1.0%,Flow5-50GPM/1-11M3.H,WT3.63Kg 200000937
  FT1.5CF1Q01   Size1.5",RFCS,ACC±1.0%,Flow15-180/3-41M3.H,WT6.8Kg 200000938
  FT2CF1Q01   Size2",RFCS,ACC±1.0%,Flow40-400GPM/9-90M3.H,WT11.35Kg 200000939
  FT3CF1Q01   Size3",RFCS,ACC±1.0%,Flow80-800GPM/18-181M3.H,WT15.9Kg 200000940
  FT4CF1Q01   Size4",RFCS,ACC±1.0%,,Flow100-1200GPM/23-271M3.H,WT22.7Kg 200000941
  FT6CF1Q01   Size6",RFCS,ACC±1.0%,,Flow200-2500GPM/45-583M3.H,WT34.05Kg 200000942
  FT8CF1Q01   Size8",RFCS,ACC±1.0%,,Flow350-3500GPM/79-795M3.H,WT50Kg 200000943
  FT10CF1Q01   Size10",RFCS,ACC±1.0%,Flow500-5000GPM/114-1140M3.H,WT55Kg 200000944
If you would like to have a quotation on the products, please input Quantity then click →
